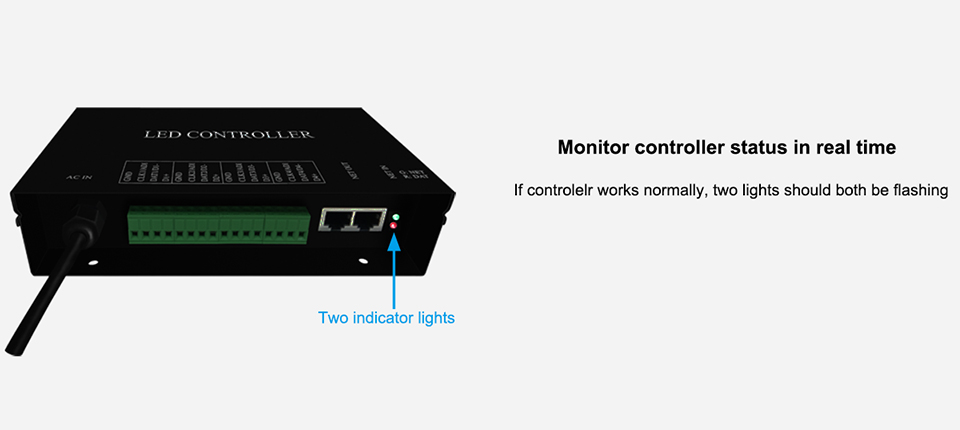

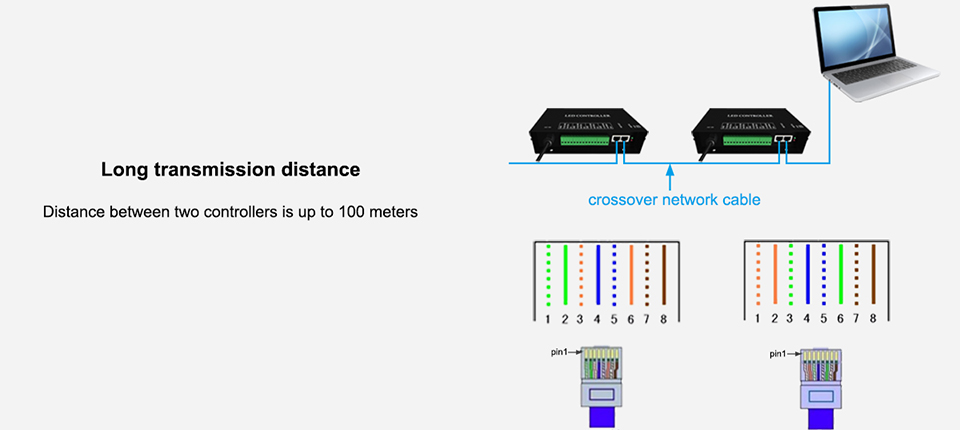

Step1. Connect H802RA to PC and led lights to H802RA like the following image displays (It's online mode)
Step2. Set an IP address for H802RA
Step3. Configure H802RA
Download Led Studio
Then, click "Save to H802RA" and close the window.

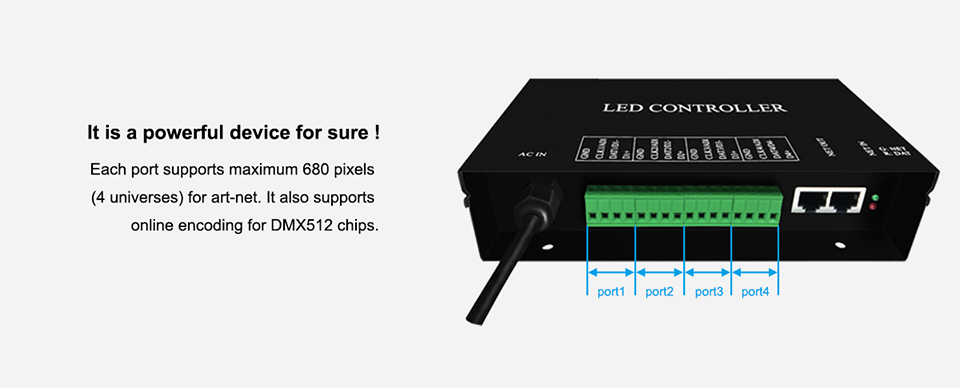

In the following example, i connect 1 pcs H802RA to PC, H802RA connects to a WS2812 panel (32 pixels by 32 pixels), each port of H802RA supports 680 pixels.
The panel consists of 2 pcs 32*16 panels

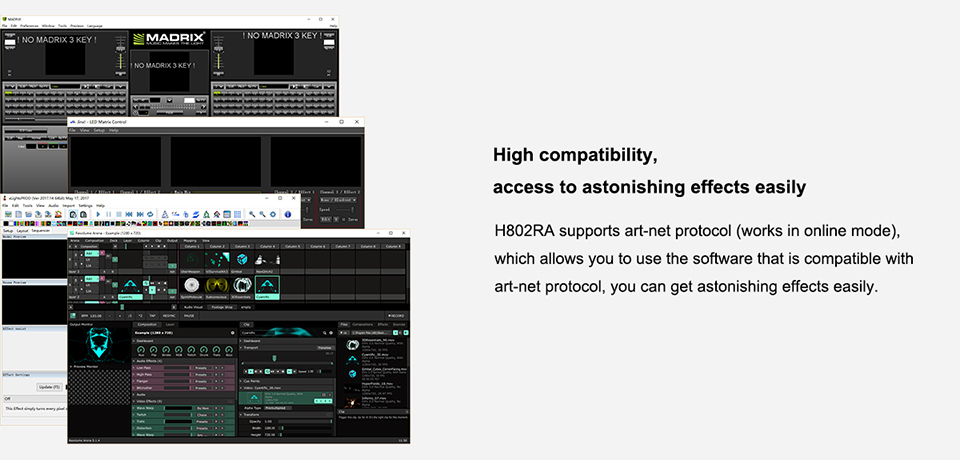

Save patch, then go back to main window, you can control led lights with MADRIX!!!
There are 16 universes in total
Choose "Audio Auto Gain Control" if you need music effect
Now, you can use Jinx! to control led lights !!!

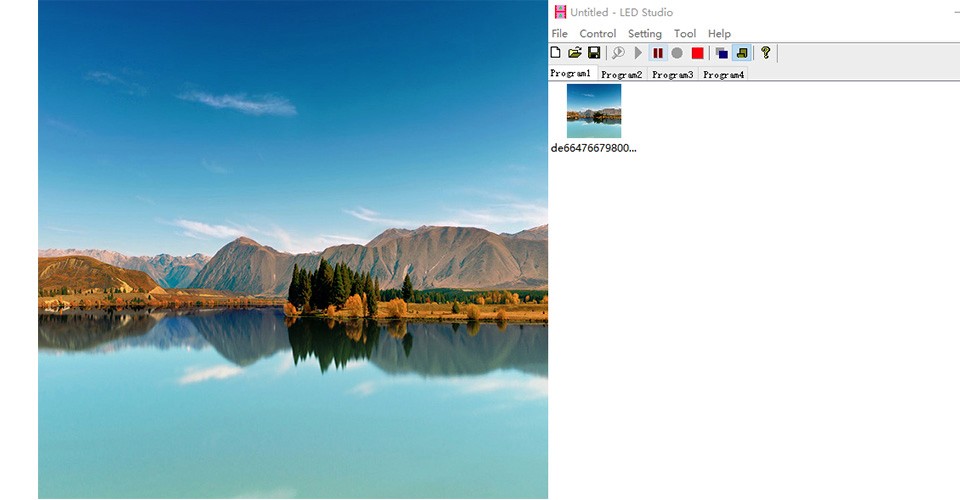

6. Basic Working Procedure for Led Studio

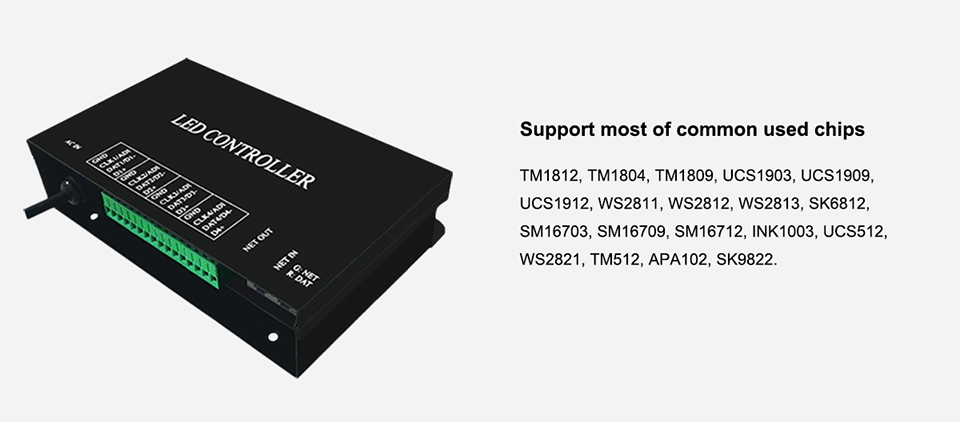

Note: many chips use one option

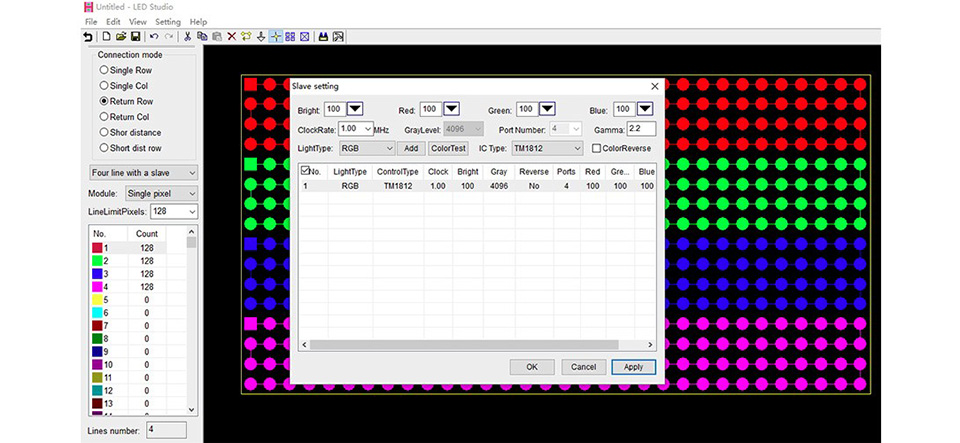

Allocate controller for the specified IP address.
7. Set Address for DMX512 chips

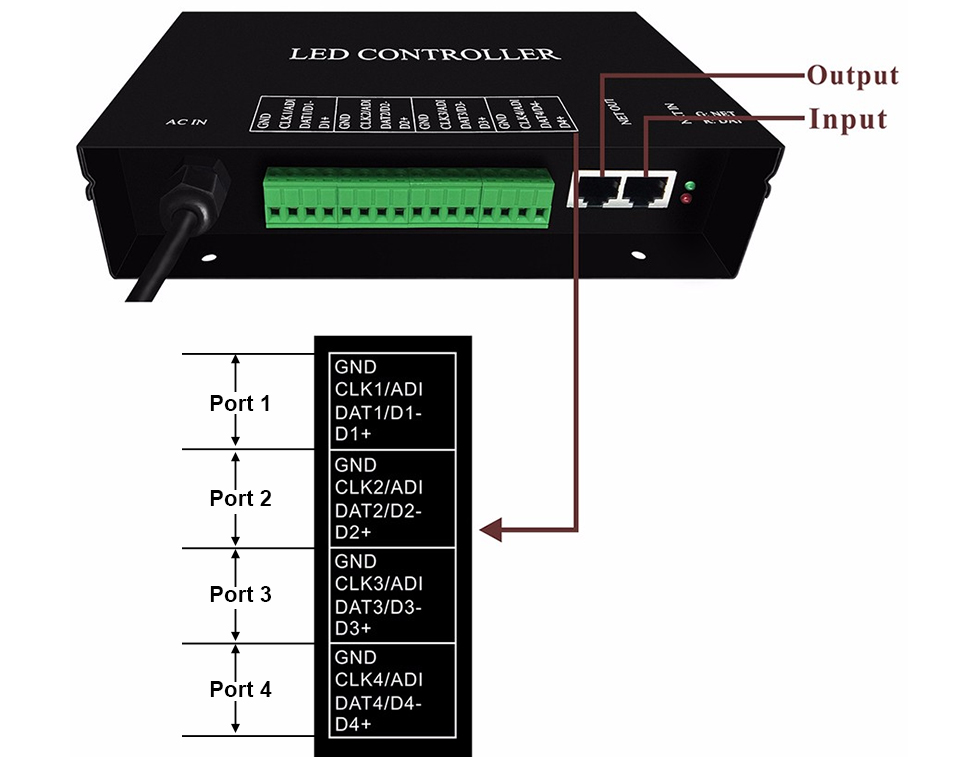

(1). Please connect your lamp to controller according to the connection method i post above(under PCB Layout).
(2). In LED Studio, click "Setting" -- "H802RA Setting".
After several seconds, lamp will turn white then green, please repower the lamp.
H802RA can address for maximum 1024 pixels.
(1). Connect to master controller, software is LED Build. Programs are stored in SD card.
LED Build download link: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ
LED Build Tutorial Video: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA
Input Voltage: Customized
Power Consumption: 1.3W
Drive Pixels Number: 4096
Dimension: L163 x W155 x H54
Carton Size: L205 x W47 x H21
PCB Size: L119 x W47 x H21
